1、 Product Overview
Processor | ARM® hexa-core 64-bit processor with up to 1.8GHz Based on big.LITTLE large and small core architecture, dual-core Cortex-A72 (large core) + quad-core Cortex-A53 (small core) |
Graphics Processor | ARM® Mali-T860 MP4 Quad-Core GPU Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 AFBC (frame buffer compression) support |
Video Processor | Supports 4K VP9 and 4K 10bits H265/H264 video decoding at up to 60fps Support 1080p@180fps H.264 decoding Support 1080p@90fps H.264 decoding 1080P multi-format video decoding (WMV, MPEG-1/2/4, VP8) 1080P video encoding, support H.264, VP8 format Video post-processor: anti-interlacing, noise removal, edge/detail/color optimization |
NPU | Up to 9TOPs for INT8/300 GOPs for INT16/100GFLOPs for FP16 Support IN8/INT16/FP16 Support for TensorFlow, Caffe, ONNX and Darknet models |
Memory | 4GB Dual Channel 64Bit DDR |
Memory | 32GB high-speed eMMC 5.1 |
Application Scenarios | AI edge computing scenarios |
1、 Product hardware features
Product Hardware Features | |
Display Interface | Video output interface: - 1 x HDMI 2.0 , support 4K@60fps output, support HDCP 1.4/2.2 - 1 x HDMI-IN, supports 1080p@60fps input (optional) |
Audio | 1 x HDMI audio output 1 x MIC audio input 1 x headphone jack for audio output |
Network | 2 x RJ45 Dual Gigabit Ethernet ports -WiFi 2.4GHz/5GHz dual-band (supports 802.11a/b/g/n/ac protocol, 2x2 MIMO technology) - Bluetooth 4.1 (BLE support) On-board 3G/4G LTE (Mini-PCIe interface) module (optional): - Support WCDMA, EVDO, 4G full network access |
USB | 1 x USB3.0 4 x USB2.0 |
Serial port | 1 x RS485 4 x RS232 (optional 4 TTL levels) 1 x RS232 (debug serial port) |
System Watchdog | Software Watchdog |
Other interfaces | 8 x GPIO |
RTC | Built-in RTC real-time clock (supports timed on/off) |
System | Android 7.1/Linxu file system (Kirin, Gaze, UBUNTU, Debian) |
Power supply | Input voltage 12V, wide voltage design, support 9-24V |
180x140x52 (mm) | |

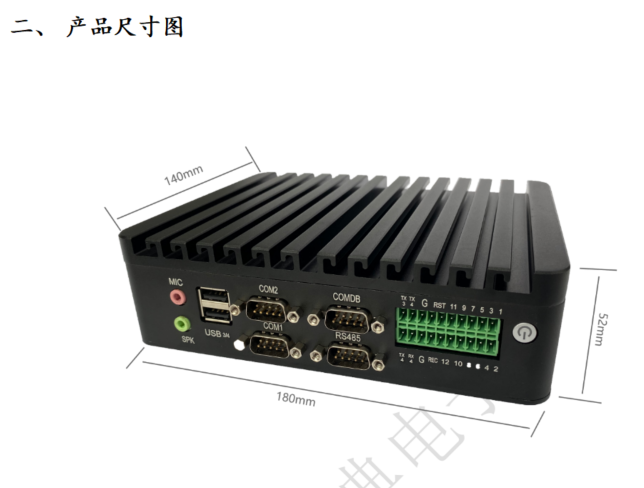

2、 Product size drawing

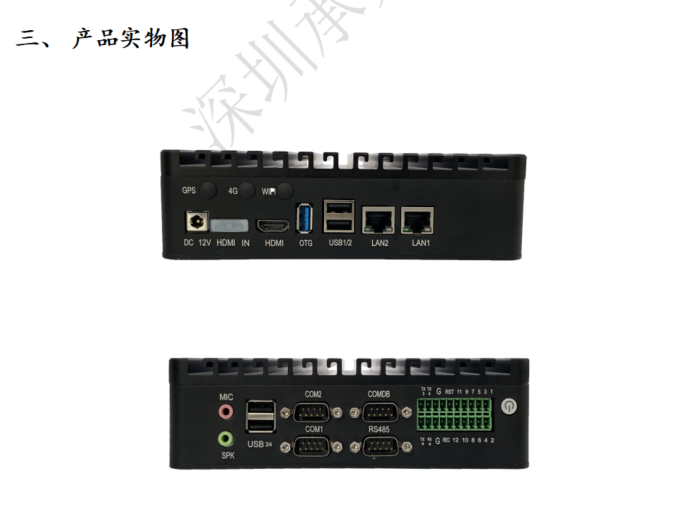

3、 Product physical picture
